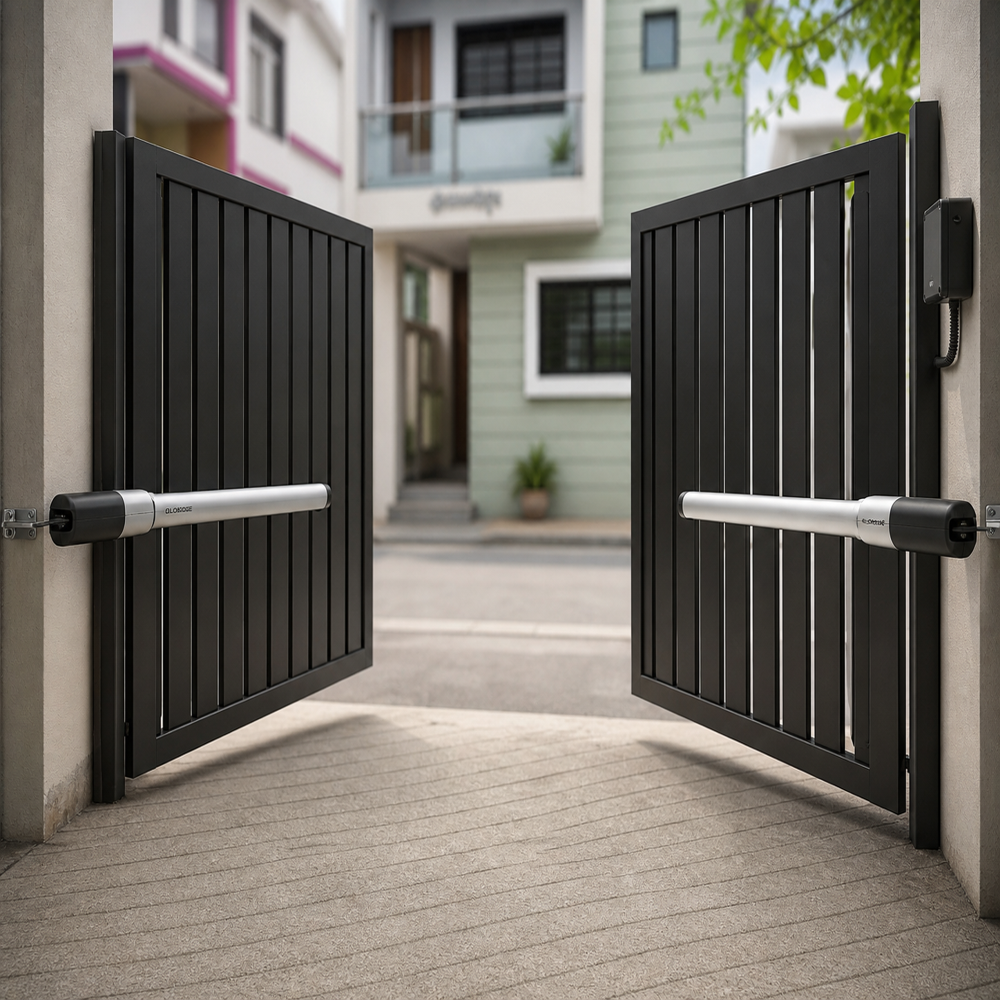

About Motorised Swing Gate-Gs 400

Swing Arm Gate Motor Specification (200 kg per gate leaf)

Parameter	Specification
Gate Type	Swing Gate
Maximum Gate Weight	200 kg per leaf
Maximum Gate Width	Up to 2.5 m 3 m per leaf
Motor Voltage	24V DC / 230V AC
Power Consumption	80W 180W
Opening Angle	Up to 120
Opening Time	1218 seconds (90 opening)
Duty Cycle	50%80%
Protection Rating	IP54 or higher
Operating Temperature	-20C to +55C
Manual Release	Key-operated manual release
Safety Features	Obstacle detection, auto-stop, auto-close
Control System	Remote control, push button, access control compatible
Remote Capacity	50200 users (controller dependent)
Application	Residential villas, bungalows, small commercial gates

Recommended Gate Specification

Gate Leaf Weight: 200 kg maximum
Gate Leaf Width: Up to 3 meters
Gate Frame: MS/Aluminium
Wind Load: Moderate

For your automation quotations, you can mention:

"Swing Arm Gate Automation System suitable for double-leaf gates up to 200 kg per leaf and 3 meters width per leaf, complete with motor set, control panel, remote controls, safety accessories, and installation."
