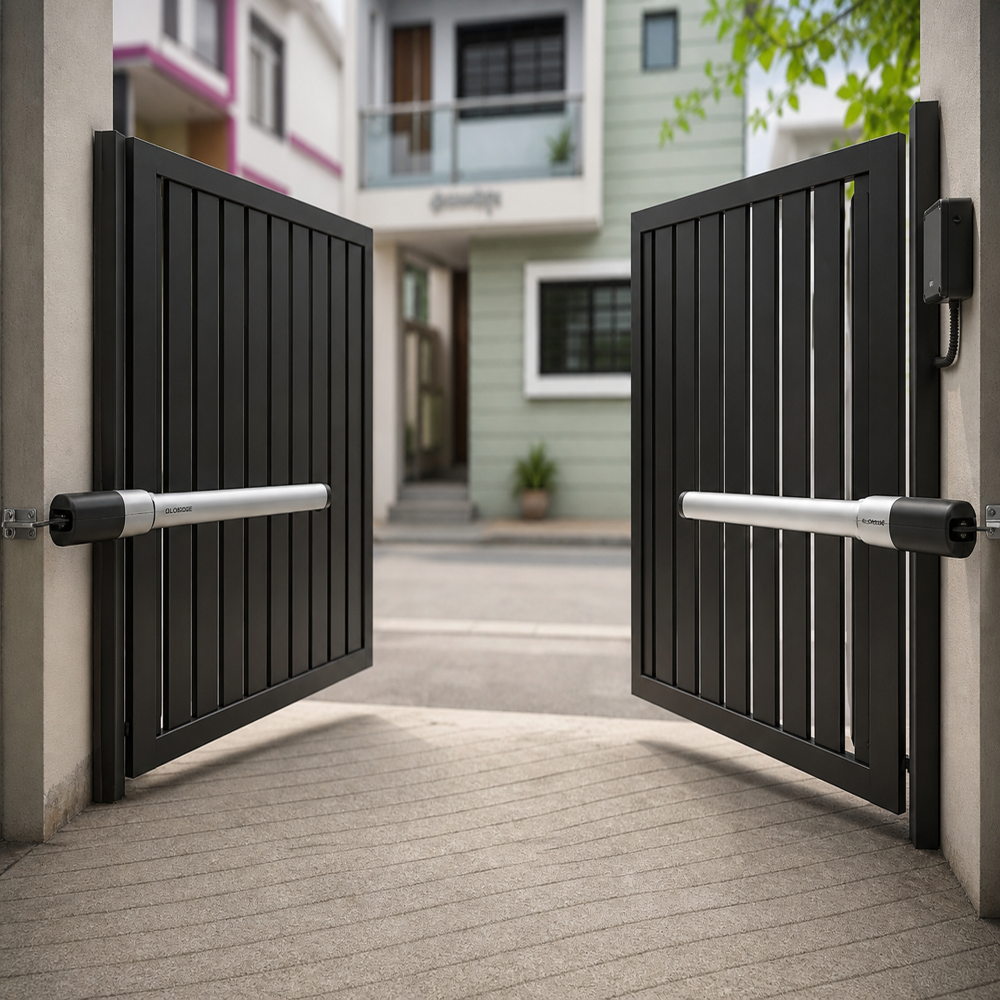

Send InquirySwing gate motor-GS 800
Price 65500.0 INR/ Piece
MOQ : 1 Piece
Swing gate motor-GS 800 Specification
- Finish Type
- Powder coated
- Capacity
- Suitable for gates up to 800 kg
- Weather Resistance
- Yes
- Function
- Automatic gate opening and closing
- Usage & Applications
- Residential, commercial, and industrial swing gates
- Tensile Strength
- High-tensile internal gears
- Anti Corrosion
- Yes
- Standard
- CE certified
- Coating Type
- Weatherproof coating
- Surface Finish
- Smooth, corrosion resistant
- Security Features
- Manual release, auto-reverse on obstacle detection
- Load Capacity
- 800 kg per leaf (max)
- Operation Type
- Electromechanical, Remote controlled
- Operating Temperature
- -20C to +50C
- Product Type
- Swing gate motor
- Material
- Aluminum body with steel internal gears
- Size
- Compact - Suitable for medium-sized swing gates
- Weight
- 11.5 kg (approx. per motor)
- Color
- Grey
- Application
- Automated swing gate access
- Mounting Type
- Gate-mountable
- Design Type
- Linear actuator type motor
- Product Model
- GS 800
- Locking Type
- Mechanical lock with optional electric lock feature
- Installation Type
- Surface mounted
- Manual Override
- Available with release key
- Remote Range
- Up to 50 meters
- Noise Level
- Less than 58 dB
- Control Panel
- Included, with backup battery option
- Safety Features
- Overheat protection, obstacle detection auto-reverse
- Operating Speed
- 15 mm/s
- Power Consumption
- 300W per motor
- Input Voltage
- 230V AC, 50Hz
- Motor Type
- Worm gear drive
- Ingress Protection
- IP54
- Maximum Gate Leaf Length
- 4.5 meters per leaf
- Cycle Rate
- 30 cycles/hour
- Compatible Accessories
- Photocells, safety flash lamp, remote controls, GSM module
Swing gate motor-GS 800 Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 7 Days
About Swing gate motor-GS 800
Advanced Automation & Security
The GS 800 swing gate motor combines high-tensile internal gears and a powder-coated aluminum body to offer exceptional durability and security. With features such as automatic obstacle detection and auto-reverse, plus a mechanical lock with optional electric upgrade, your property is safeguarded at all times.
User-Friendly Operation and Installation
Managing your gates has never been easier with remote control access up to 50 meters. The included control panel and intuitive surface-mount design ensure smooth installation and hassle-free operation, whether for home, business, or industrial facilities.
Weatherproof and Reliable Performance
Rated IP54 and built with corrosion-resistant materials, the GS 800 is engineered to withstand diverse weather conditions and temperatures ranging from -20C to +50C. Boasting a quiet, powerful motor and an integrated backup power option, it delivers reliable and uninterrupted service.
FAQ's of Swing gate motor-GS 800:
Q: How does the GS 800 swing gate motor enhance security and safety?
A: The GS 800 features obstacle detection with auto-reverse, overheat protection, and a secure manual release function. Optional electric lock accessories can further increase gate security, ensuring safe and reliable operation in varied environments.Q: What is the maximum gate size and weight this motor can handle?
A: This motor is suitable for swing gates up to 4.5 meters per leaf and can manage a maximum load of 800 kg per leaf, making it ideal for medium-sized residential, commercial, and industrial gates.Q: When is the backup battery used in the GS 800 system?
A: The backup battery (optional accessory) automatically takes over during power outages, ensuring uninterrupted automatic gate operation and maintaining security even when main power is unavailable.Q: Where can the GS 800 swing gate motor be installed?
A: It is designed for gate-mountable, surface installation on residential, commercial, or industrial swing gates, thanks to its compact size and robust, weatherproof construction.Q: What is involved in the process of manual override?
A: In case of a power failure or emergency, the manual override can be engaged by using the provided release key. This allows the gate to be operated manually, ensuring continued access and safety.Q: How does the GS 800 motor accommodate different environmental conditions?
A: With an IP54 ingress rating, weatherproof, corrosion-resistant coating, and operational range from -20C to +50C, the GS 800 is built to withstand a wide variety of climates and environmental stresses.Q: What accessories are compatible with the GS 800 system?
A: The GS 800 supports various accessories, including photocells, a safety flash lamp, remote controls, and a GSM module for enhanced function, safety, and control.
